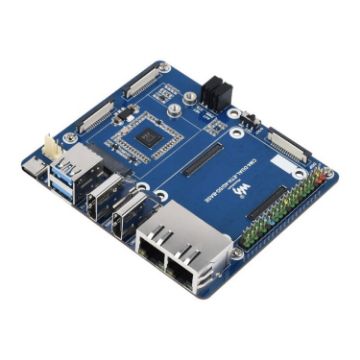

Waveshare Dual Gigabit Ethernet 5G/4G Base Board for Raspberry Pi CM4

CM4 socket: Suitable for all variants of Compute Module 4
Network:
Ethernet: Dual Gigabit Ethernet RJ45
M.2 B KEY, for connecting 5G / 4G module
Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
USB 3.2 Gen1 x 2
PIN header: Raspberry Pi 40PIN GPIO headerx 1
Display: MIPI DSI port (15pin 1.0mm FPC connector)

A$82.64 A$102.47

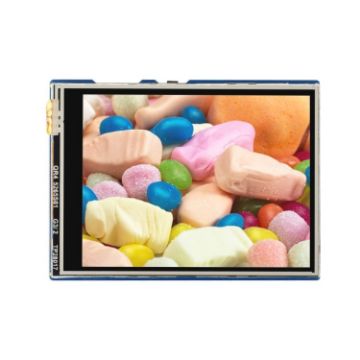

WAVESHARE 2.8 inch 262K Colors 320 x 240 Pixel Touch Display Module for Raspberry Pi Pico, SPI Interface

320x240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
MicroSD card slot for storing images and direct displaying them easily
Programmable backlight control, power saving
Come with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Operating voltage: 5V
Resolution: 320x240 pixels
Display color: 265K colorful

A$26.62 A$32.48

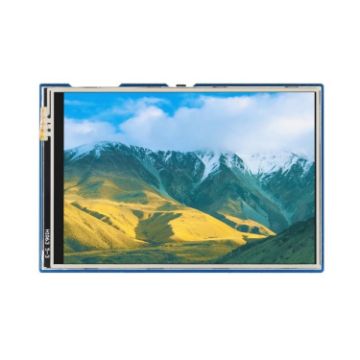

WAVESHARE 3.5 inch 65K Colors 480 x 320 Touch Display Module for Raspberry Pi Pico, SPI Interface

480 x 320 resolution, IPS screen, 65K colors, clear and colorful displaying effect
Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
MicroSD card slot for storing images and direct displaying them easily
Programmable backlight control, power saving
Come with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Operating voltage: 5V
Resolution: 480x320 pixels
Display color: 65K colorful

A$38.62 A$47.51

WAVESHARE 1.44 inch LCD 65K Colors 128 x 128 Display Module for Raspberry Pi Pico, SPI Interface

128 x 128 resolution, 65K RGB colors, clear and colorful displaying effect
SPI interface, requires minimal IO pins
4x user buttons for easy interacting
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Operating voltage: 3.15V ~ 5V
Communication Interface: 4-wire SPI
Resolution: 128 x 128 pixels
Display color: 65K colorful

A$19.00 A$23.18

Waveshare Compute Module IO Board with PoE Feature (Type B) for Raspberry Pi all Variants of CM4

POE: Integrates 802.3af-compliant PoE circuit (5V/2.5A)
USB: USB 2.0 x 4
GPIO: Raspberry Pi 40 PIN GPIO x 1
Header:
RS485 x 1
RS232 x 1
PCIe Gen 2 x 1
HD media interface: HDMI x 2, supports 4K 30fps output

A$67.85 A$81.42

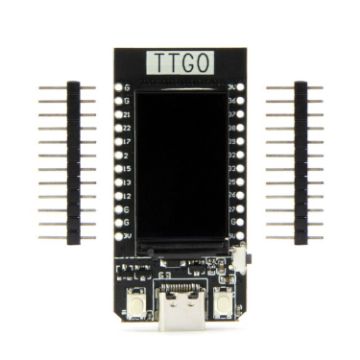

TTGO T-Display 4MB ESP32 WiFi Bluetooth Module 1.14 inch Development Board for Arduino

Hardware Specifications
Chipset: ESPRESSIF-ESP32 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
FLASH: QSPI flash 4MB
SRAM: 520 kB SRAM
Button: Reset
USB to TTL: CP2104
Modular interface: UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, DACLNA pre-amplifier
Display: IPS ST7789V 1.14 Inch

A$26.78 A$31.06

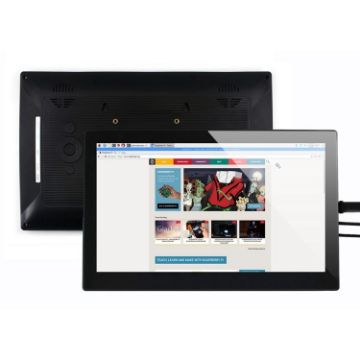

WAVESHARE 13.3inch HDMI LCD (H) Capacitive Touch Screen LCD with Toughened Glass Cover, Supports Multi mini-PCs, Multi Systems

13.3inch IPS screen,1920x1080 high resolution
Toughened glass capacitive touch panel, 6H hardness
Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
When works with Raspberry Pi, supports Raspbian, Ubuntu, WIN10 IOT, single touch, and driver free
hen work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
3.5mm audio jack, supports HDMI audio output
Embedded ferrite Hi-Fi speaker

A$237.22 A$284.66

WAVESHARE 7 inch HDMI LCD (H) IPS 1024x600 Capacitive Touch Screen

IPS screen, 1024x600 hardware resolution, configurable by software (up to 1920x1080)
Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers
When works with Raspberry Pi, supports Raspbian, Ubuntu, WIN10 IOT, single touch, and driver free
When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
3.5mm audio jack, speaker connector, supports HDMI audio output
Also supports VGA input (specific cable is required and should be purchased separately)

A$72.20 A$87.36

Waveshare 3.4 inch DSI Round Touch Display, 800 800, IPS, 10-Point Touch

Resolution: 800 800
Display interface: DSI
Display panel: IPS
Viewing angle: 170 degrees
Touch type: capacitive touch
Touch points: ten-point touch
Touch interface: I2C
Touch panel: tempered glass panel

A$125.54 A$155.67

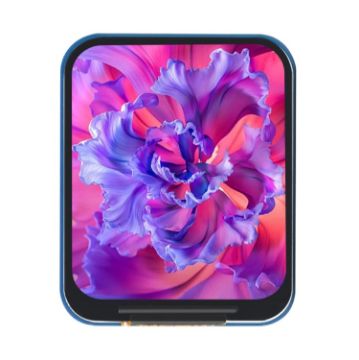

Waveshare 1.69 Inch 240280 Resolution IPS LCD Display Module With SPI Interface

1.69-inch LCD expansion board with built-in ST7789V2 driver chip
240 280 resolution, 262K color, can clearly display color pictures
Use SPI control to ensure that too many interface pin resources are not occupied, and can be connected to main control boards such as Raspberry Pi / Arduino / STM32
Onboard level conversion chip, compatible with 3.3V / 5V power input
Provide complete supporting information manuals (sample programs such as Raspberry Pi / Arduino / STM32)
Parameter:
Working voltage: 3.3V / 5V
Resolution: 240 280 pixels

A$17.50 A$20.13

Waveshare 1080x1080 IPS Optically Bonded 5-Inch HDMI Circular 10-Point Touch Screen (24369)

10-point touch, depending on the operating system
Tempered glass panel with up to 6H hardness
Optically bonded, good display, dustproof
IPS display panel, 160-degree wide viewing angle display performance is excellent
Support Raspberry Pi operating system, Ubuntu / Kali / WIN10 IoT, Retropie, driver-free
Device and system support: Jason Nano, Ubuntu, driver-free7. Support Windows 11 / 10 / 8.1 / 8 /
7, driver-free
Weight: 0.381 kg

A$197.23 A$240.61

Waveshare 1.9inch 262K Colors 170x320 LCD Display Module for Raspberry Pi Pico, SPI Interface, 23822

Embedded ST7789V2 driver chip, using SPI interface
170x320 resolution, 262K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like for Raspberry Pi/Arduino/STM32
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Onboard voltage translator: compatible with 3.3V / 5V power Input
Onboard SPI control interface: for use with controller boards like for Raspberry Pi / Arduino / STM32
Operating voltage: 3.3V / 5V
Resolution: 170 x 320 pixels

A$23.00 A$28.75
