DIY Parts & Components
Waveshare 26587 For Raspberry Pi 5 Argon Neo Aluminum Alloy Case, Spec: M.2 Upgraded
- For Raspberry Pi 5th generation
- Made of aluminum alloy, high hardness and strong pressure resistance
- The shell has reserved GPIO slots and various interfaces
- Built-in 30mm PWM fan, good heat dissipation effect
- Equipped with anti-skid pad and power button
- Simple installation and convenient operation
- Product size: Standard version: 95.5 x 71.5 x 30mm, upgraded version: 95.2 x 71.4 x 40mm
- Note: The delivery does not include Raspberry Pi 5 motherboard and M.2 hard drive!
A$94.57 A$113.49

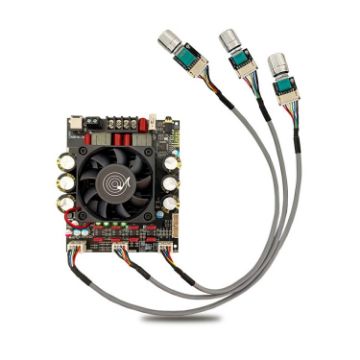

HIFI Dual-Channel High-Power TPA3255 Digital Amplifier Board (Split Type)
- Bluetooth chip: Jie Li 5.3, transmission distance 10 meters
- Input method: Bluetooth + AUX + U disk / sound card
- Number of channels: 2.0, left channel + right channel
- Amplifier chip: original TPA3255
- Protection mechanism: input undervoltage, overheating, overcurrent, short circuit protection, no input reverse connection protection, positive and negative poles cannot be reversed!
- Adapter power supply: working voltage range 18-50VDC, limit 53V, recommended voltage 36-48V, current 10A or more DC power supply
- Power: single channel 300w@50V, 4 ohms; 160W@50V, 8 ohms; the higher the voltage, the smaller the resistance, the greater the output power
- Size: 118x100x38mm
A$52.38 A$65.48

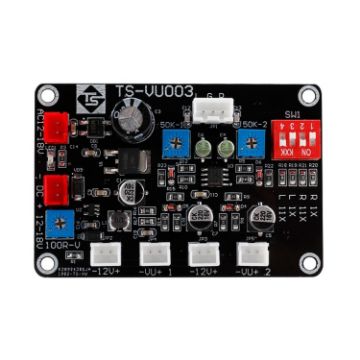

VU Meter Driver Board Module Adjusts Power Amplifier (TS-VU003)
- AC/DC12-16V power supply, distinguish between AC and DC input terminals. L, G, R: These are the dual-channel input terminals of the driver board, which can be connected to the audio of mobile phones, computer sound cards, preamplifiers and other audio source devices (the signal is the signal that the headphones can hear), and the amplifier output terminal to get the signal. When wiring, L, G, and R correspond to the left, ground, and right channels of the audio source device respectively. If the input is a mobile phone, computer sound card, preamplifier and other audio sources, please turn the dip switches 1 and 3 to the ON end. 1. AC/DC12-16V power supply, distinguish between AC and DC input terminals
- L, G, R: This is the dual-channel input terminal of the driver board, which can be connected to the audio of mobile phones, computer sound cards, preamplifiers and other audio source devices (the signal is the signal that can be heard by headphones), and the output of the power amplifier. When wiring, L, G, and R correspond to the left, ground, and right channels of the audio source device respectively. If the input is a mobile phone, computer sound card, preamplifier and other audio sources, please turn the dip switches 1 and 3 to the "ON" end. If the input is the output of the power amplifier, please turn the dip switches 2 and 4 to the "ON" end. The signal will be compressed 11 times. Note that the dip switches 1 to 4 cannot be turned to the "ON" end at the same time.
- The adjustable potentiometer "100R-V" is used to adjust the brightness of the vu meter backlight
- The adjustable potentiometers "50k-1" and "50k-2" control the pointer jump amplitude of VU meter 1 and VU meter 2 respectively
- Made of high-quality glass fiber ABS material
- The driver board components are finely manufactured and durable
- Stable performance makes the VU meter better, the pointer swings quickly, the response is sensitive, the wide range voltage stabilization circuit, and the working performance is more stable
- This driver board supports low access, has adjustable brightness and darkness backlight, and intelligent drive
A$16.49 A$20.61
Waveshare 25947 For Raspberry Pi 5th DSI Display 22Pin To 15Pin Soft Cable FPC Cable, Spec: 300mm
- For Raspberry Pi 5 to connect DSI display
- 22Pin to 15Pin
- 200 / 300 / 500mm optional
- Made of high-quality material, flexible and durable
- The picture is for display only, DSI cable and CSI cable cannot be mixed
- Note: Only DSI cable will be shipped, no other!
A$9.84 A$12.30

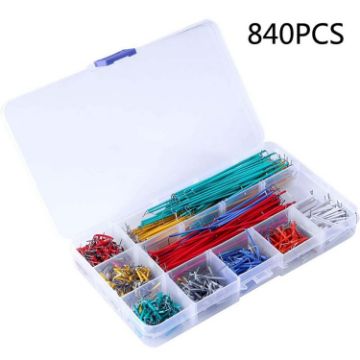

840 PCS 14 Lengths Jumper Wire U Shape Solderless Breadboard Jumper Wire Kit
- Convenient and portable, durable
- Made of high-quality copper wire material, safe and durable to use
- Healthy materials, safe and non-toxic, durable and dirt-resistant
- Name: Jumper special wire for breadboard
- Dimensions: 2mm, 5mm, 7mm, 10mm, 12mm, 15mm, 17mm, 20mm, 22mm, 25mm, 50mm, 75mm, 100mm, 125mm
A$11.67 A$13.54

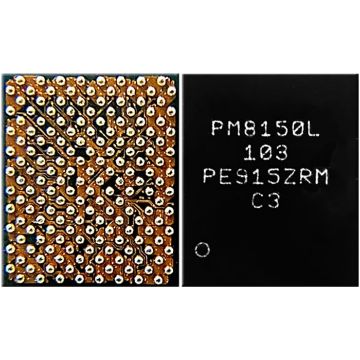

Power IC Module PM8150L 103
- PM8150L 103 Power IC chip replacement.
- Replace your broken or unworkable item with a new one.
- Each item has been checked and in good condition before shipping.
- Completely fit and work.
- Professional installation is highly recommended. We will not be responsible for any damages to your cellphone/mobile phone that you may cause during the changing of replacement parts.
A$6.53 A$7.70

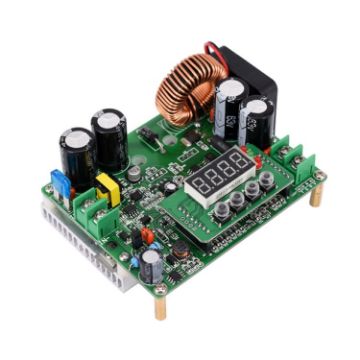

60V Step-Down Power Module 12A High Power CNC Converter
- Input voltage range: 10V-75V
- Output voltage adjustment range: 0-60V
- Output current adjustment range: 0-12A
- Output power: 0-720W
- Output voltage setting resolution: 10mV
- Output current setting resolution: 10mA
- Output ripple: 50mVpp (input 54V, output 30V, current 5A)
- Storage operation: M0-M9 total 10 groups of parameters storage
A$42.43 A$51.76

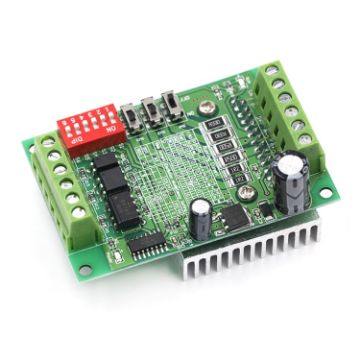

TB6560 3A 10V-35V Stepper Motor Driver Controller Board (Green)
- The working voltage is DC 10V-35V. It is recommended to use a switching power supply DC24V for power supply.
- Using 6N137 high-speed optical coupling to ensure high speed without losing step.
- Using Toshiba TB6560AHQ chip, there are built-in low-voltage shutdown, overheating shutdown and overcurrent protection circuits to ensure performance.
- The rated output (max) is: +/-3A, with a vertex value of 3.5A.
- It is suitable for two-phase/four-phase/four-wire/six-wire stepping motor with 42,57 stepping within 3A, but not suitable for stepping motor with more than 3A.
- Automatic half-flow function.
- Subdivision: Full step, half step, 1/8 step, 1/16 step, maximum 16 subdivision.
- Dimensions: Width 50 x length 75 x height 35 (MM)
A$15.02 A$18.33

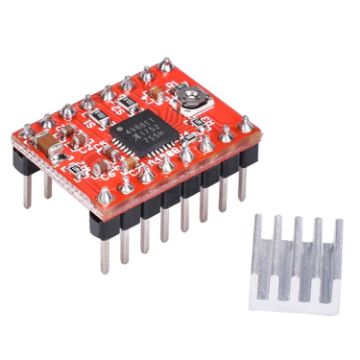

2 PCS HW-134A A4988 Red Board Stepper Motor Driver Module Heat Sink for 3D Printer
- Features: Higher copper content, good heat dissipation performance, strong current stability
- Manufacturing process: SMT placement machine manufacturing, non-manual welding, higher yield rate, more stable performance
- Remarks:
- A single-head printer requires 4 A4988 modules.
- A set of dual-nozzle printer requires 5 A4988 modules.
- Delivery list: A4988 module x 1, heat sink aluminum sheet x 1
- Matters needing attention: Please do not plug and unplug the motor and drive when the power is on, which will easily cause the drive to burn out; also do not adjust the current when the motor is running. The correct way is to first disconnect the power supply, unplug the motor, and then power on again, adjust the potentiometer, and measure the voltage on the potentiometer until the measured voltage is the same as expected. Do not plug in the reverse drive, otherwise it will burn out the drive and even the motherboard
A$10.64 A$12.55

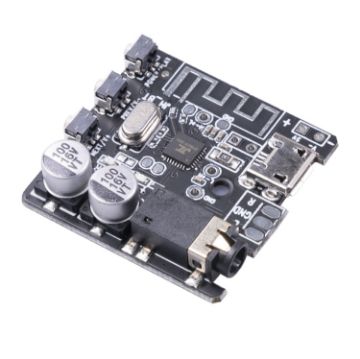

6966 DIY Bluetooth 5.0 Audio Receiver Board Module MP3 Lossless Player Wireless Stereo Music Amplifier Module (Black)
- Using Bluetooth 5.0 main control chip, good transmission effect and high stability
- With button control, there are control up and down music, volume addition and subtraction, playback, pause, switch machine, etc., and reserved high and low level control interfaces, regardless of daily use, and DIY modification, it is very playable
- Micro 5 Pin interface power supply, ordinary mobile phone charger charging cable can be used.
- Product use: Bluetooth audio signals from mobile phones, laptops, and tablets can be transmitted to power amplifiers, active speakers and other devices through this Bluetooth audio receiver. The audio interface can also be connected to ordinary headphones with a 3.5mm interface. The headset becomes a Bluetooth headset (without a microphone, voice chat is not supported)
- Power interface: Micro 5 Pin (reserved 2.5mm welding port, this model does not support battery power supply)
- Input voltage: 3.7V-5V
- Signal-to-noise ratio: 90DB
- THD+N: -70DB
A$9.29 A$10.96
Waveshare Industrial USB to RS485 Converter
- Overview
- This is an industrial USB to RS485 converter with original FT232RL and SP485EEN inside. It features embedded protection circuits such as lightningproof, resettable fuse, ESD protection, and TVS diode, etc. It is pretty small in size.
- The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
- USB to RS485 communication
- Adopt original FT232RL and SP485EEN, fast communicating, stable and reliable, better compatibility
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
- 3 LEDs for indicating the power and transceiver status
A$23.42 A$27.65
Waveshare WAVEGO 12-DOF Bionic Dog-Like Robot, Basic Version (UK Plug)
- The WAVEGO is a high-DOF bionic dog-like robot which features 2.3kg.cm large torque servos, reliable structure, and flexible motion, incorporating devices like front camera, 9-axes motion tracker, RGB indicator, etc., together with open source multi-platform Web application. It uses the ESP32 as sub controller for connecting rod inverse solving and gait generation, sharing calculating task for the host controller, an additional Raspberry Pi can be attached as the host controller for high-level decision operating.
- Overall 12-DOF, multi connecting rods leg design, increasing the servo effective torque
- A real time operating system is used as sub controller for connecting rod inverse solving and gait generation, sharing calculating task for the host controller and improving the gait solving efficiency
- Ultra compact structure design, allows using on the table, aluminum alloy + nylon structure materials, ensuring strength while keeping it light weight
- Additional Raspberry Pi can beattached as the host controller to enable OpenCV high-level functions, demo codes including facial recognition, motion detection, color tracking, and more. Reserved extension interface for secondary development, along with user manual and secondary development documents.
- General:
- Product name: WAVEGO high-DOF bionic quadruped robot
- Stand up: length 218mm, width 116mm, height 152mm
A$317.09 A$386.85
