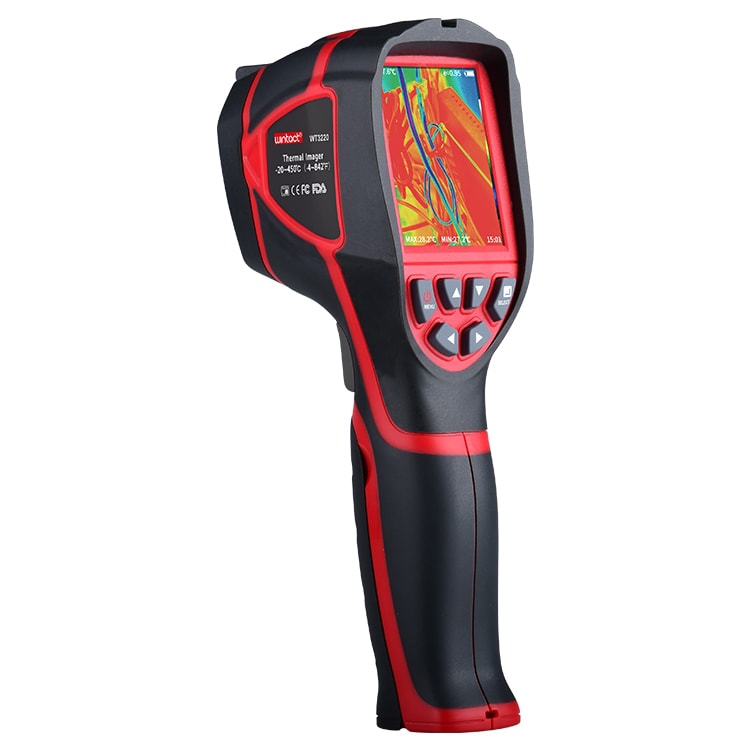

Wintact WT3220 Infrared Thermal Imager Camera

Be the first to review this product

SKU: 06-0223808

This product is an infrared thermal imager that integrates surface temperature measurement and real-time thermal images.
The traditional infrared thermometer needs to measure each part one by one, but the infrared thermal imager does not need it, thus saving time
In addition, the center point measurement cursor is used for fast and accurate positioning to measure temperature to increase the degree of discrimination. The product is equipped with a visible light camera
The thermal image and visible light image are stored in the device, which can be read via USB or stored in a computer to generate reports or print
The product is small in size, easy to operate, and powerful. This is an ideal choice for electric power, electronic manufacturing, industrial inspection and other fields
The emissivity can be adjusted to improve the measurement accuracy of semi-reflective objects.
The upper and lower temperature cursors can guide the user to the upper and lower temperature areas of the thermal image
Optional palette

A$555.43

A$666.52

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

1. This product is an infrared thermal imager that integrates surface temperature measurement and real-time thermal images.
2. The traditional infrared thermometer needs to measure each part one by one, but the infrared thermal imager does not need it, thus saving time
3. In addition, the center point measurement cursor is used for fast and accurate positioning to measure temperature to increase the degree of discrimination. The product is equipped with a visible light camera
4. The thermal image and visible light image are stored in the device, which can be read via USB or stored in a computer to generate reports or print
5. The product is small in size, easy to operate, and powerful. This is an ideal choice for electric power, electronic manufacturing, industrial inspection and other fields
6. The emissivity can be adjusted to improve the measurement accuracy of semi-reflective objects.
7. The upper and lower temperature cursors can guide the user to the upper and lower temperature areas of the thermal image
8. Optional palette
9. Application areas include electric power, metallurgy, petrochemicals, machinery, coal, transportation, fire protection, national defense, etc. It can not only perform real-time detection under high-voltage, high-current, and high-speed operation, but also realize real-time detection
10. There is no need to cut off power, stop or stop production to detect potential problems and prevent failures
11. Display: 2.8-inch full-angle TFT display
12. Infrared image resolution: 220x160
13. Field of view: 35x26 degrees
14. Temperature measurement range: -20 to 450 degrees Celsius
15. Measurement accuracy: +/-2 degrees Celsius/+/-2% (more than 300 degrees Celsius, the accuracy is +/-5%)
16. Visible image resolution: 300,000 pixels
17. LCD resolution: 320??240
18. Focus distance: 0.5-70mk
19. Emissivity: adjustable from 0.01 to 1.00
20. Thermal image frame rate: 9 Hz
21. Wavelength coverage: 8-14um
22. Focus mode: fixed
23. Palette: rainbow, iron oxide red, cool color, black and white, white and black
24. Storage capacity: built-in 3G (store more than 20,000 images)
25. Dimensions: 69.4x225x93.4mm
26. Weight: 329.1g

Packing List

Wintact WT3220 Infrared Thermal Imager Camera
Original set and packaging
