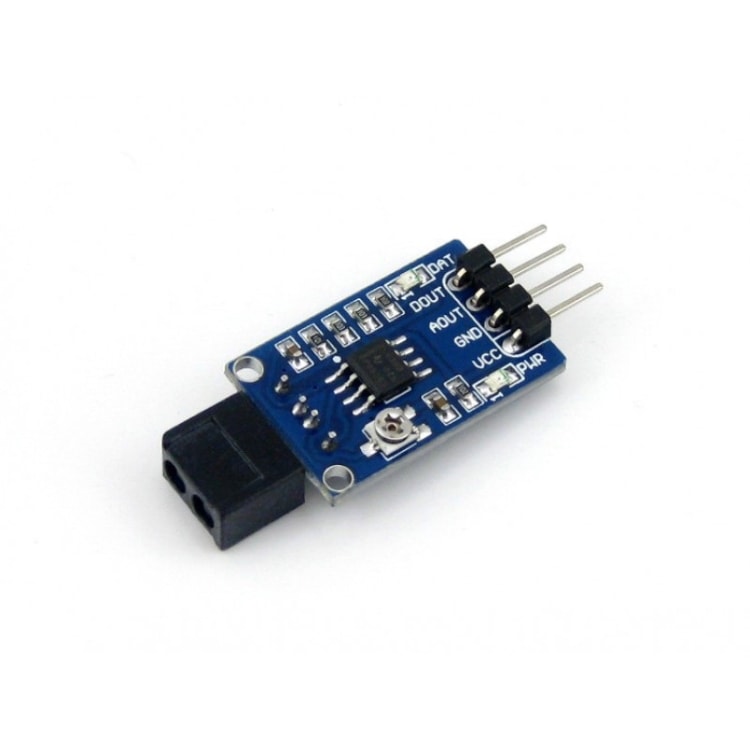

Waveshare Infrared Reflective Sensor

Be the first to review this product

SKU: 06-0197713

Overview
1. Reflective infrared Transceiver
Features wide range voltage comparator LM393
Adjustable sensitivity
Signal output indicator
Specifications
1. Power: 3.0V ~ 5.3V
Dimension: 25mm * 15.9mm

A$15.24

A$18.43

Availability: In stock

Qty:

i h

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

Overview
1. Reflective infrared Transceiver
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator
Specifications
1. Power: 3.0V ~ 5.3V
2. Dimension: 25mm * 15.9mm
3. Mounting holes size: 2.0mm
Applications
1. Robot path tracking
2. Obstacle-avoiding car
3. Pipeline counter
How to Use
In the case of working with a MCU:
Pinouts
1. VCC: 3.0V ~ 5.3V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT : MCU.IO (digital output)
Package Contents
1. Infrared Reflective Sensor x1
2. 4-pin custom connector jumper wire x1

Packing List

Waveshare Infrared Reflective Sensor
Original set and packaging
