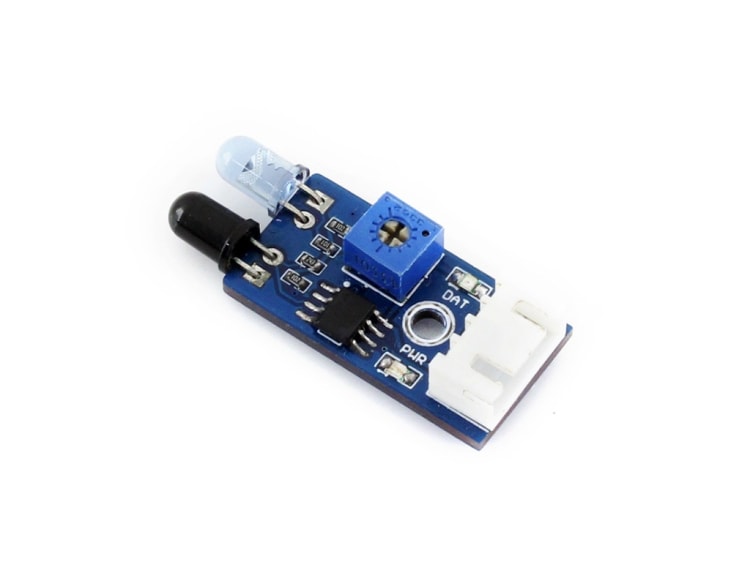

Waveshare Infrared Proximity Sensor, Obstacle-Avoiding

SKU: 06-0153908

A$12.59

A$15.24

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Overview
Emitting a beam of infrared, and receive the reflected beam
Features wide range voltage comparator LM393
Adjustable sensitivity
Signal output indicator
Specifications
Power: 3.3V ~ 5V
Dimension: 39mm 15.5mm (include the IR LED)
Mounting holes size: 3mm
Detection range: 2cm ~ 30cm (depending on the obstacle's color, farthest for white)
Detection angle: 35
Recommended environment: in door, to avoid the sunshine effect
Applications
Robot path tracking
Obstacle-avoiding car
Pipeline counter
How to Use
In the case of working with a MCU:
VCC 3.3V ~ 5V
GND GND
AOUT MCU.IO (analog output)
DOUT MCU.IO (digital output)

Packing List
