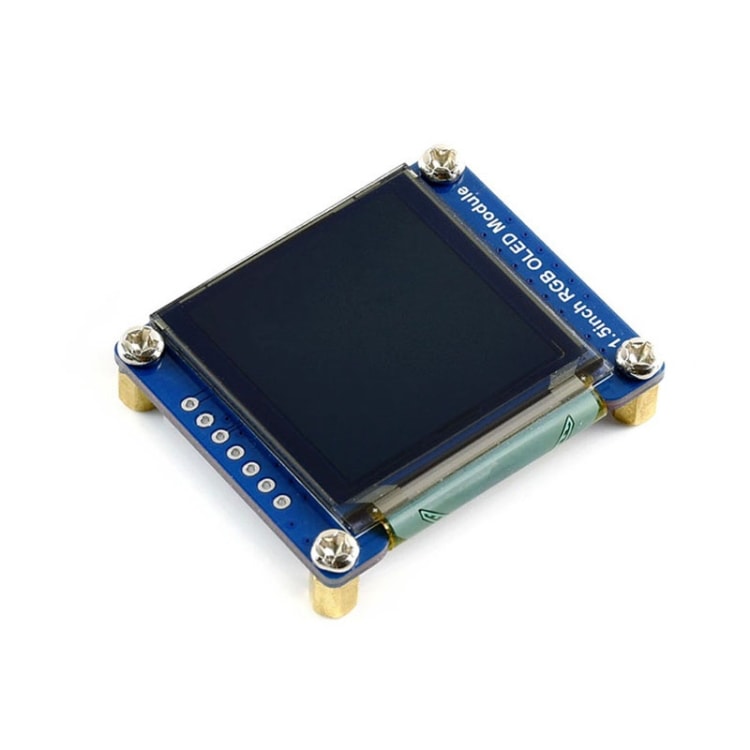

Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module

SKU: 06-0197758

1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface
Overview
This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.
128x128 high resolution, 65K colors, clearly displays colorful images
Support 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Driver: SSD1351
Interface: 4-wire SPI, 3-wire SPI

A$31.91

A$39.26

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface
Overview
This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.
Features
1. 128x128 high resolution, 65K colors, clearly displays colorful images
2. Support 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
3. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Driver: SSD1351
2. Interface: 4-wire SPI, 3-wire SPI
3. Display color: RGB, 65K colors
4. Resolution: 128x128
5. Viewing angle: >160 degree
6. Operating voltage: 3.3V / 5V
7. Dimension: 44.5 x 37 (mm)
Package Contents
1. 1.5 inch RGB OLED Module x1
2. PH2.0 7Pin x1
