    Waveshare 9.7 inch E-Ink Raw Display 1200x825 - Parallel Port - 1 Waveshare 9.7 inch E-Ink Raw Display 1200x825 - Parallel Port - 2 Waveshare 9.7 inch E-Ink Raw Display 1200x825 - Parallel Port - 3 Waveshare 9.7 inch E-Ink Raw Display 1200x825 - Parallel Port - 4

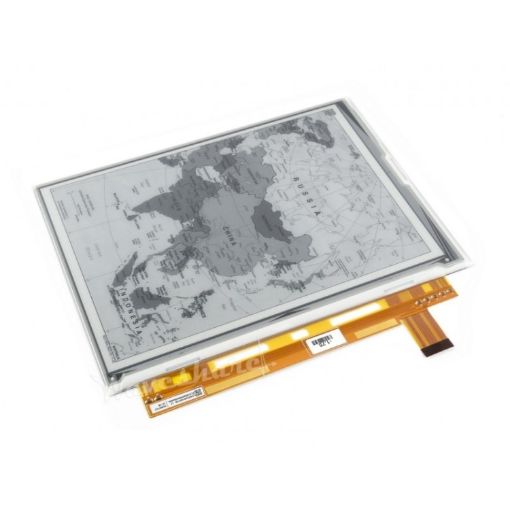

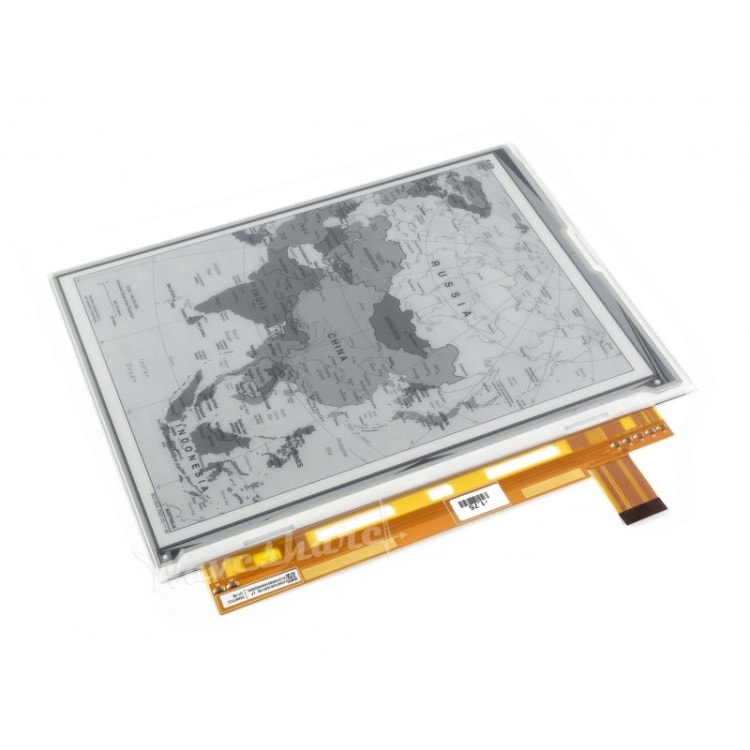

    Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB

    Be the first to review this product
    SKU: 06-0197747
    • Overview
    • This is an E-Ink raw display, 9.7inch, 1200x825 resolution, communicating via parallel port.
    • Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
    • No backlight, keeps displaying last content for a long time even when power down
    • Low power consumption, basically power is only required for refreshing
    • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/STM32)
    • Operating voltage: 5V
    • Interface: parallel port
    A$205.69
    A$236.54
    Availability: In stock
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features
    • Overview
    • 1. This is an E-Ink raw display, 9.7inch, 1200x825 resolution, communicating via parallel port.
    • 2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
    • Features
    • 1. No backlight, keeps displaying last content for a long time even when power down
    • 2. Low power consumption, basically power is only required for refreshing
    • 3. Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/STM32)
    • Specifications
    • 1. Operating voltage: 5V
    • 2. Interface: parallel port
    • 3. Outline dimension: 218.8mm x 156.425mm x 1.15mm
    • 4. Display size: 202.8mm x 139.425mm
    • 5. Dot pitch: 0.169 x 0.169
    • 6. Resolution: 1200 x 825
    • 7. Display color: black, white
    • 8. Gray scale: 2-16 (1-4 bit)
    • 9. Full refresh time: <1s
    • 10. Viewing angle: >170 degree
    • 11. Weight: 0.09 kg
    • 12. Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 9.7inch e-Paper HAT
    Packing List
    • Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB
    • Original set and packaging
