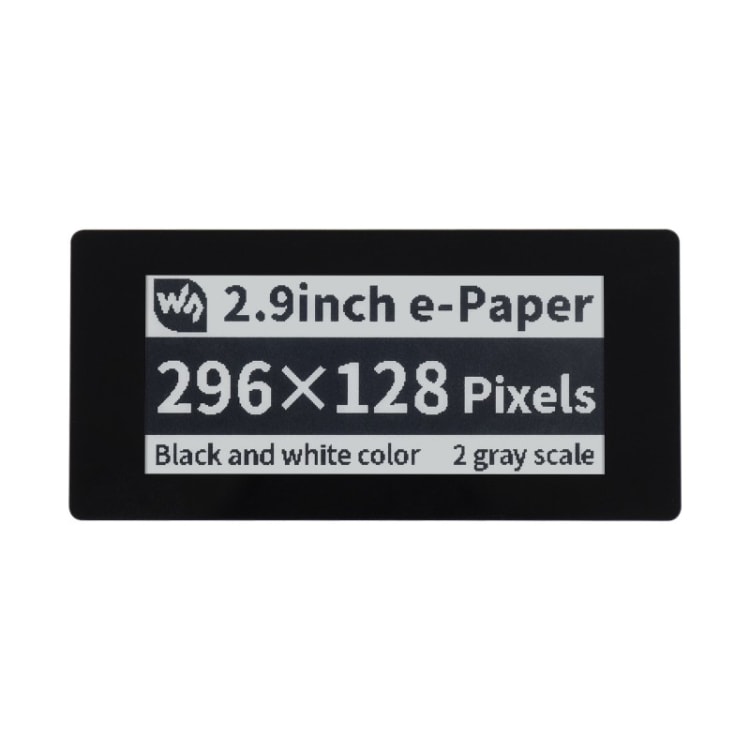

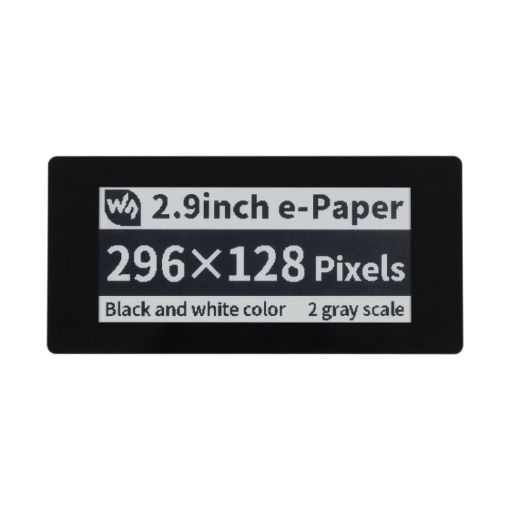

Waveshare 2.9 inch 296 x 128 Pixel 5-Points Capacitive Touch Black/White E-Paper E-Ink Display HAT for Raspberry Pi Pico, SPI Interface

SKU: 06-0197781

2.9inch capacitive touch ePaper module, 296??128 resolution
5-points touch support, user-defined wakeup gesture
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Reversed control interface, for connecting with controller boards like Arduino/STM32, etc.
Comes with development resources and manual (examples for Raspberry Pi)
Operating voltage: 3.3V/5V

A$39.79

A$49.73

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features
1. 2.9inch capacitive touch ePaper module, 296??128 resolution
2. 5-points touch support, user-defined wakeup gesture
3. No backlight, keeps displaying last content for a long time even when power down
4. Ultra low power consumption, basically power is only required for refreshing
5. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
6. Reversed control interface, for connecting with controller boards like Arduino/STM32, etc.
7. Comes with development resources and manual (examples for Raspberry Pi)
Specification
1. Operating voltage: 3.3V/5V
2. Display color: Black, white
3. Resolution: 296 x 128 pixels
4. Grey scale: 2
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 2s
9. Dimensions: 89.10 x 42.70mm
10. Display size:66.89 x 29.05mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.227 x 0.226mm

Packing List

Waveshare 2.9 inch 296 x 128 Pixel 5-Points Capacitive Touch Black/White E-Paper E-Ink Display HAT for Raspberry Pi Pico, SPI Interface
Original set and packaging
