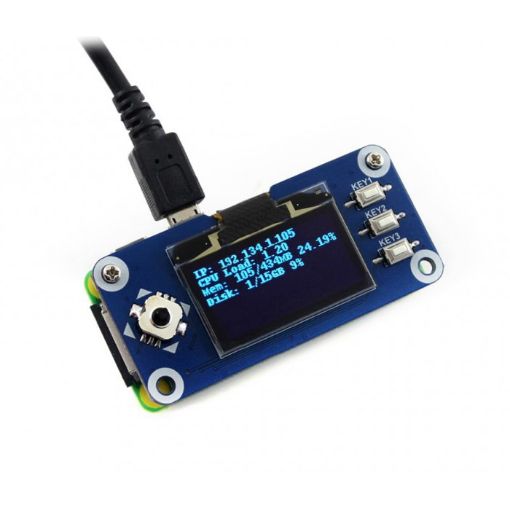

WAVESHARE 128x64 1.3inch OLED Display HAT for Raspberry Pi

SKU: 06-0153910

Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W
Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
1x joystick (5-position), 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Driver: SH1106
Interface: 4-wire SPI, 3-wire SPI, I2C
Display color: blue
Resolution: 128x64

A$20.65

A$24.15

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W
2. Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
3. 1x joystick (5-position), 3x pushbuttons, handy and useful
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
5. Driver: SH1106
6. Interface: 4-wire SPI, 3-wire SPI, I2C
7. Display color: blue
8. Resolution: 128x64
9. Operating voltage: 3.3V

Packing List
