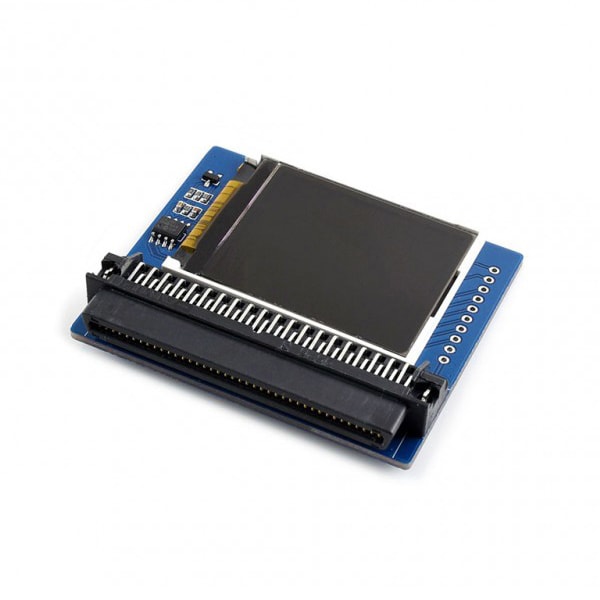

WAVESHARE 1.8inch 160x128 Colorful Display Module for Mmicro:Bit,65K Colors

SKU: 06-0153913

micro:bit edge connector, directly pluggable
Embedded driver ST7735S, supports 65K colors
Onboard SRAM 23LC1024, used as display cache, no more out of memory
SPI interface, takes up only a few IO pins
Backlight adjustment via PWM
Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
Driver: ST7735S
Resolution: 160x128

A$32.18

A$37.01

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. micro:bit edge connector, directly pluggable
2. Embedded driver ST7735S, supports 65K colors
3. Onboard SRAM 23LC1024, used as display cache, no more out of memory
4. SPI interface, takes up only a few IO pins
5. Backlight adjustment via PWM
6. Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
7. Driver: ST7735S
8. Resolution: 160x128
9. Color display: RGB, 65k colors
10. Operating voltage: 3.3 v
11. Dimension: 61 x 51.5mm

Packing List
