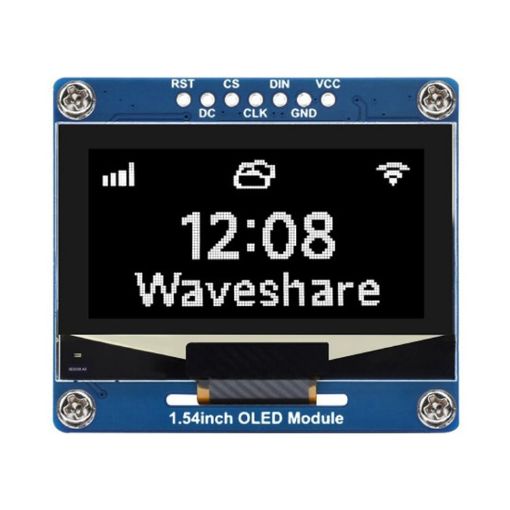

Waveshare 1.54 Inch OLED Display Module, 12864 Resolution, SPI/I2C Communication (White)

SKU: 06-0300543

Onboard voltage converter, compatible with 3.3V/5V MCU
Using 4-wire SPI and I2C interface, better compatibility and fast data rate
Comes with online development resources (Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano examples)
Working voltage: 3.3V/5V
Display panel: OLED
Resolution: 12864 pixels
Pixel size: 0.25 0.25 mm
Communication interface: 4-wire SPI/I2C

A$24.92

A$28.91

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Onboard voltage converter, compatible with 3.3V/5V MCU
2. Using 4-wire SPI and I2C interface, better compatibility and fast data rate
3. Comes with online development resources (Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano examples)
4. Working voltage: 3.3V/5V
5. Display panel: OLED
6. Resolution: 12864 pixels
7. Pixel size: 0.25 0.25 mm
8. Communication interface: 4-wire SPI/I2C
9. Driver: SSD1309
10. Display size: 35.05 17.52mm
11. Module size: 43.00 37.50mm
12. Weight: 3 grams
Packing list:
-1.54-inch OLED module x 1
-GH1.25 7PIN cable x 1

Packing List

Waveshare 1.54 Inch OLED Display Module, 12864 Resolution, SPI/I2C Communication (White)
Original set and packaging
