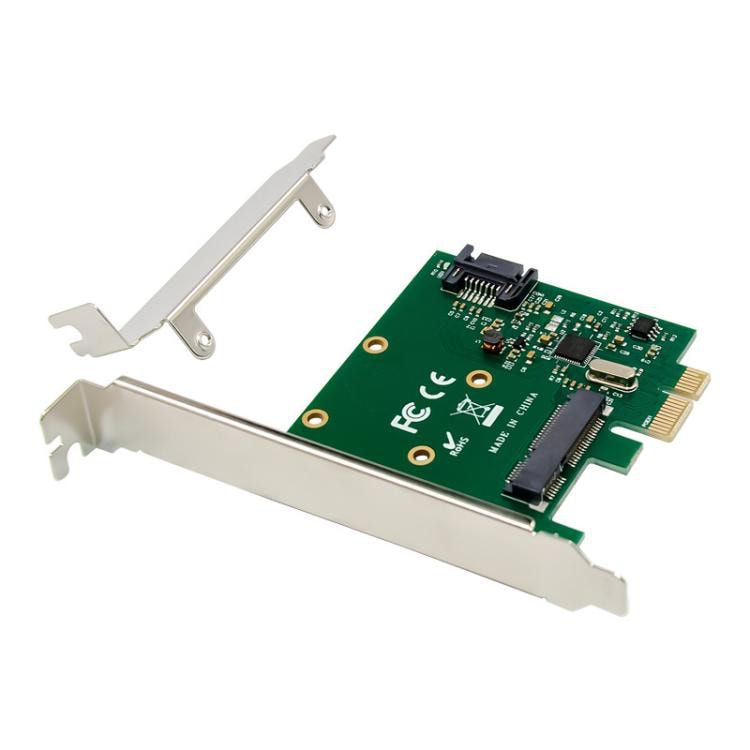

SUNWEIT ST58 PCIe X1 ASM1061 Single Port MSATA 6Gbps SSD Disk Storage Expansion Card

SKU: 06-0306468

ASM1061 is a PCI Express Gen 2 to two-port serial ATA controller, supporting serial ATA PHY, up to 6Gbps high-speed interface
Backward compatible with SATA2.0/SATA1.0, and has Msata interface and SATA interface, can connect HDD, SSD and other extended storage
PCIe slot:
Compliant with PCIe 2.0 specification, support 1xLane PCIe 2.0 endpoint device
Support communication speeds of 2.5 Gbps and 5.0 Gbps
Payload payload up to 128 bytes
Support error reporting, recovery and correction
Support message signaled interrupt (MSI)

A$23.72

A$28.00

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. ASM1061 is a PCI Express Gen 2 to two-port serial ATA controller, supporting serial ATA PHY, up to 6Gbps high-speed interface
2. Backward compatible with SATA2.0/SATA1.0, and has Msata interface and SATA interface, can connect HDD, SSD and other extended storage
PCIe slot:
1. Compliant with PCIe 2.0 specification, support 1xLane PCIe 2.0 endpoint device
2. Support communication speeds of 2.5 Gbps and 5.0 Gbps
3. Payload payload up to 128 bytes
4. Support error reporting, recovery and correction
5. Support message signaled interrupt (MSI)
SATA controller:
1. Compliant with Serial ATA Specification 3.0
2. 1 x 7 Pin SATA port, 1 x mSATA half/full size port
3. Support communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps
4. Support programmable transmitter signal level
5. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i
6. Support two SATA ports
7. Support AHCI 1.0 and IDE programming interface
8. Support native command queue (NCQ)
9. Support port FIS-based switching or command-based switching
10. Support partial and sleep power management states
11. Support staggered rotation
Packing list:
- Array card x 1
- Short iron sheet x 1
- Screw kit x 1
- CD driver x 1

Packing List

SUNWEIT ST58 PCIe X1 ASM1061 Single Port MSATA 6Gbps SSD Disk Storage Expansion Card
Original set and packaging
