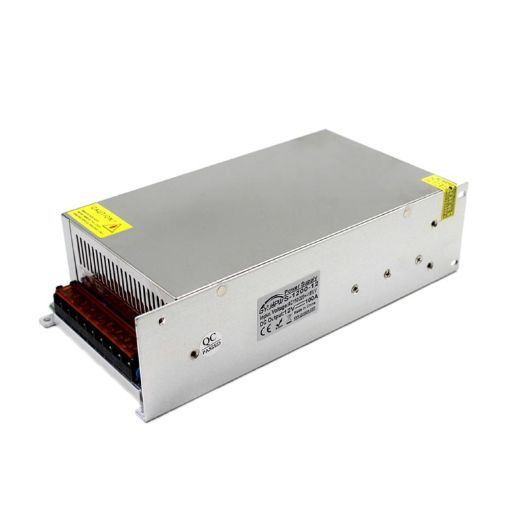

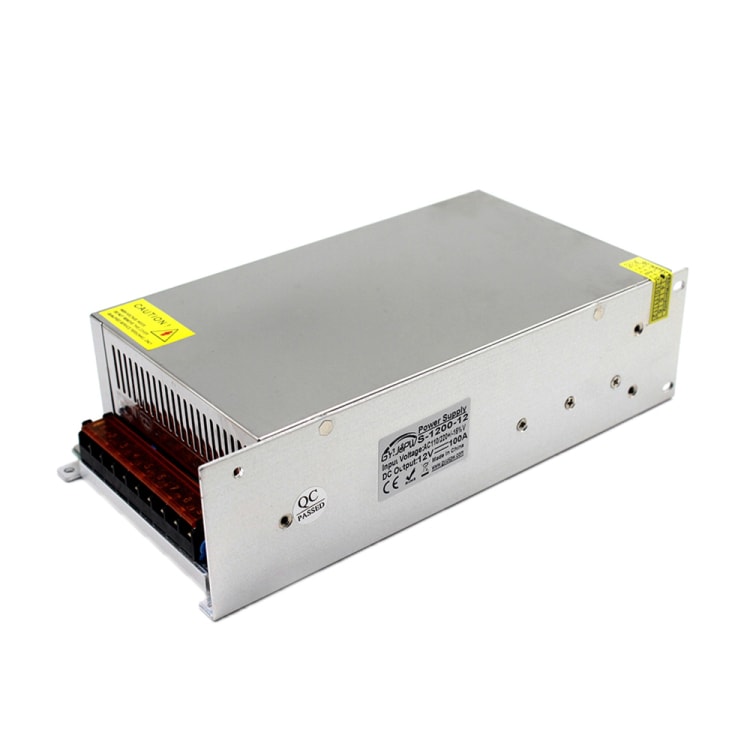

S-1200-12 DC12V 100A 1200W LED Light Bar Monitoring Security Display High-power Lamp Power Supply, Size: 245 x 125 x 65mm

SKU: 06-0142780

All products have passed the full power aging test to provide safety and stability.
The aluminum casing is used to enhance heat dissipation and provide the service life of the product.
Input voltage: 110V/220V +/- 1% (100-140V, 180-260V)
Output voltage: DC12V 100A
Difference range: +/- 1%
Power: 1200W
Output adjustable voltage range: +/- 5%
Frequency: 50-60Hz

A$67.45

A$81.62

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. All products have passed the full power aging test to provide safety and stability.
2. The aluminum casing is used to enhance heat dissipation and provide the service life of the product.
3. Input voltage: 110V/220V +/- 1% (100-140V, 180-260V)
4. Output voltage: DC12V 100A
5. Difference range: +/- 1%
6. Power: 1200W
9. Output adjustable voltage range: +/- 5%
10. Frequency: 50-60Hz
11. Leakage current: less than 1mA / 230V
12. Temperature coefficient: +/- 0.03%/degree Celsius
13. Start, rise, hold time: 200ms, 50ms, 20ms
14. Vibration resistance: 10-500Hz, 2G 10min/1 cycle, duration 60 minutes, each axis
15. Protection: overload, overvoltage, overcurrent, short circuit
16. Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC
17. Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH
18. Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH
19. Dimensions: 245 x 125 x 65mm

Specifications

General
Certificate	CE, ROHS, FCC, EMC

Packing List

S-1200-12 DC12V 100A 1200W LED Light Bar Monitoring Security Display High-power Lamp Power Supply, Size: 245 x 125 x 65mm
Original set and packaging
