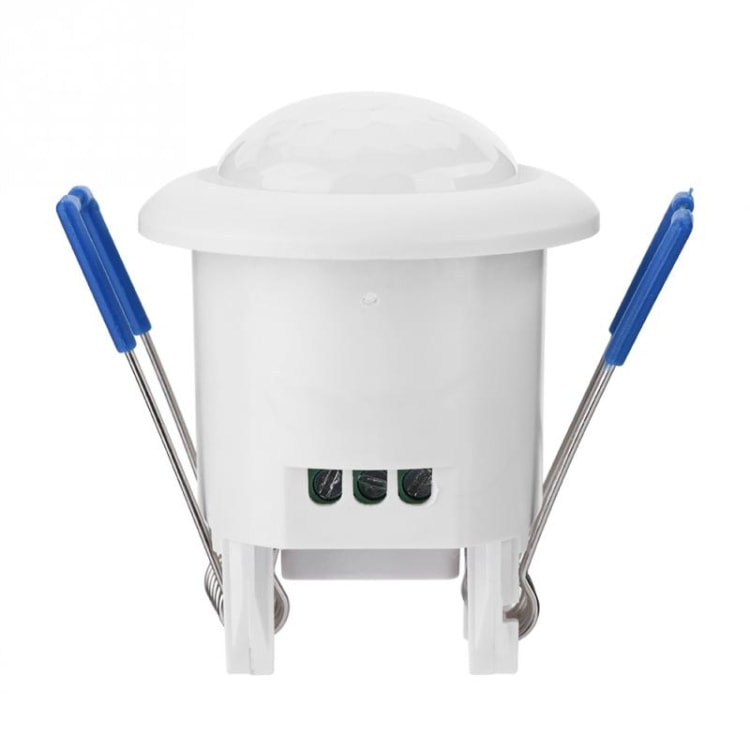

Mini Embedded Infrared Motion Sensor Detector Light Switch 360 Degree PIR Detection

Be the first to review this product

SKU: 06-0199627

Infrared PIR Motion Sensor: It can detect human movement by detecting infrared ray emitted by human body.
Intelligent Brightness Sensor: It adopts photosensitive control, it will not turn on the light during the daytime or strong light environment, or you can choose to turn on the light during the any light environment.
3.360 Degrees Cone Angle Detecting Range: High and stable sensitivity, effectively save energy and improve efficiency.
Time Delay: intelligent sensing, it will automatically close after a delay after the person leaves. After it is turned on within the delay period, if there is no human activity, there is a time for delaying the work for a certain period of time and adjusting the delay time within the appropriate range.
Wide Applications: Widely used on the motion-activated lighting, corridors, bathrooms, basements, warehouses, garages and other places, automatic exhaust ventilation fan and other electrical appliances and other functions.
Temperature Compensation: Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.
Operating voltage: 85-265V, AC
Installation method: embedded installation

A$17.59

A$21.11

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

Features:
1. Infrared PIR Motion Sensor: It can detect human movement by detecting infrared ray emitted by human body.
2. Intelligent Brightness Sensor: It adopts photosensitive control, it will not turn on the light during the daytime or strong light environment, or you can choose to turn on the light during the any light environment.
3.360 Degrees Cone Angle Detecting Range: High and stable sensitivity, effectively save energy and improve efficiency.
4. Time Delay: intelligent sensing, it will automatically close after a delay after the person leaves. After it is turned on within the delay period, if there is no human activity, there is a time for delaying the work for a certain period of time and adjusting the delay time within the appropriate range.
5. Wide Applications: Widely used on the motion-activated lighting, corridors, bathrooms, basements, warehouses, garages and other places, automatic exhaust ventilation fan and other electrical appliances and other functions.
6. Temperature Compensation: Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.
Specifications:
1. Operating voltage: 85-265V, AC
2. Installation method: embedded installation
3. Maximum load: resistive load 800W
4. Wiring method: Bipolar
5. Output Mode: Inductive Output
6. Light control range: 5 Lux ~ 500Lux 20% (adjustable sensitivity)
7. Delay range: 16~350s, 30% (adjustable delay)
8. Induction mode: passive
9. Sensing angle: 360 degree cone angle
10. Sensing distance: 10m
11. Installation method: wall mounting, suction point installation, ceiling installation

Packing List

Mini Embedded Infrared Motion Sensor Detector Light Switch 360 Degree PIR Detection
Original set and packaging
