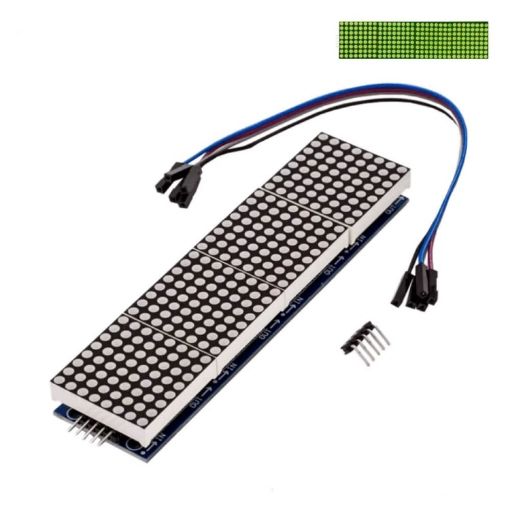

    MAX7219 Point Battage Module LH Control Single-Chip Module 4 In 1 Display Green Light - 1 MAX7219 Point Battage Module LH Control Single-Chip Module 4 In 1 Display Green Light - 2 MAX7219 Point Battage Module LH Control Single-Chip Module 4 In 1 Display Green Light - 3 MAX7219 Point Battage Module LH Control Single-Chip Module 4 In 1 Display Green Light - 4 MAX7219 Point Battage Module LH Control Single-Chip Module 4 In 1 Display Green Light - 5

    MAX7219 Point Battage Module LH Control Single-Chip Module 4 In 1 Display With 5P Cable, Specification: Green Light

    Be the first to review this product
    SKU: 06-0026428
    • A single module can drive an 8x8 common negative dot matrix
    • Module operating voltage: 5V
    • With 64 fixed screw holes, hole diameter 3mm
    • With input/output interfaces, support multiple modules cascade.
    • 3 IO ports can drive 1 dot matrix, no flicker when displaying.
    A$12.45
    A$14.69
    Availability: In stock
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features
    • 1. A single module can drive an 8x8 common negative dot matrix
    • 2. Module operating voltage: 5V
    • 3. With 64 fixed screw holes, hole diameter 3mm
    • 4. With input/output interfaces, support multiple modules cascade.
    • 5. 3 IO ports can drive 1 dot matrix, no flicker when displaying.
    • 6. Size: 12.8 x 3.2 x 1.3cm, cable length about 20cm
    • 7. Weight: about 45.2g
    • Wiring instructions:
    • 1. Left side is input port, right side is output port.
    • 2. When controlling a single module, connect the input port to the CPU.
    • 3. When multiple modules are cascaded, the input of the first module is connected to the CPU, the output is connected to the input of the second module, the output of the second module is connected to the input of the third module, and so on.
    • 4. Take 51 microcontroller as an example:
    • - VCC → 5V
    • - GND → GND
    • - DIN → P2.2
    • - CS → P2.1
    • - CLK → P2.0
    Packing List
    • MAX7219 Point Battage Module LH Control Single-Chip Module 4 In 1 Display With 5P Cable, Specification: Green Light
    • Original set and packaging
