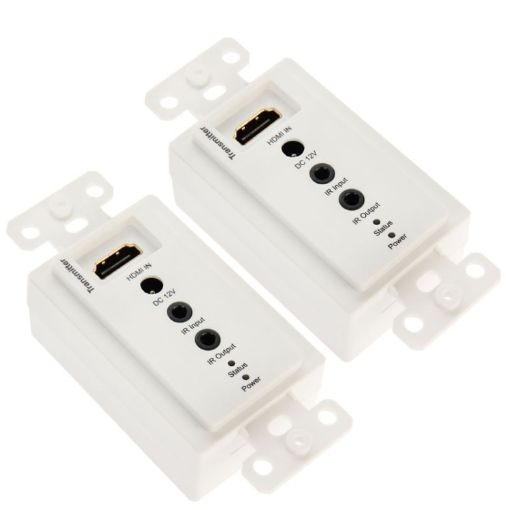

HDMI Single Cat5e/6 50 Meters Wall Plate Extender (EU Plug) (White)

SKU: 06-0148664

Extending distance is 50 meters at resolutions 1080P 3D or 1920x1200 60fs, and 80 meters at 1080i/720P through single CAT5e cable
Support audio formats, Dolby True HD, DTS-master, etc
Support 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc.
Support EDID call back
Support CEC pass through
VESA DDC and hot swap technology (HPD)
Support power over UTP cable, single 12V DC power supply from any side of TX or RX
Bi-direction remote IR (RX->TX and TX->RX)

A$72.91

A$88.95

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

About the product
1. Extending distance is 50 meters at resolutions 1080P 3D or 1920x1200 60fs, and 80 meters at 1080i/720P through single CAT5e cable
2. Support audio formats, Dolby True HD, DTS-master, etc
3. Support 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc.
4. Support EDID call back
5. Support CEC pass through
6. VESA DDC and hot swap technology (HPD)
7. Support power over UTP cable, single 12V DC power supply from any side of TX or RX
8. Bi-direction remote IR (RX->TX and TX->RX)
9. Both HDMI input and output are compatible with HDCP 1.2
10. Be compatible with DVI 1.0
11. Support cascade to enhance extending distance

Specifications

General
Video Bandwidth	165MHz
Frequency Bandwidth	4.95Gbps
Input/ Output TMDS Signal	1.2 volts (point to point)
ESD Level	HBM +-8 kV
Input/ Output DDC Signal	5 volts (point to point)
Operating Temperature	0 ~ 40 Degree Celsius
Power Consumption	<3.5W TX, <2.5W RX
Size	105mm x 45mm x 35mm
Package Include
Package Contents	1 x Power Adapter 1 x User Manual 1 x Transmitter 1 x Receiver 2 x IR IN Cables 2 x IR OUT Cables
