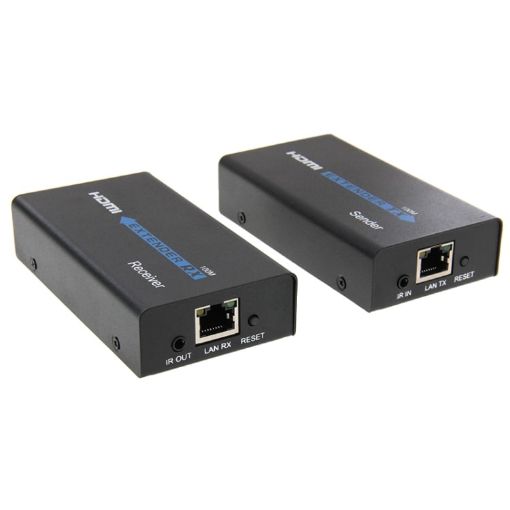

HDMI Extender over Single UTP CAT5e/6 Cable, Transmission Distance: 100m

SKU: 06-0148661

The 100m HDMI extender use single cat5 or cat-6 (recommended) cables up to 100 metres. HDMI extender over cat5/ cat6 us designed to convert HDMI single to standard TCP/IP and transmit by Internet cable or LAN. With the advantage of TCP/IP standard, it can transmit HDMI single source from HD STB, DVD, PS3, HDMI display etc. to HD projector, DLP, LCD, LED and other audio visual equipment.
100% brand new and high quality
Each set includes one transmitter and one receiver
Transmission distance extend up to 100 meters for 1080P over cat5
Follow the standard of IEEE-568B
Support resolution up to 1080p full HD
Support Ethernet bandwidth 100m
HDCP compliant

A$85.74

A$99.46

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

About the product
The 100m HDMI extender use single cat5 or cat-6 (recommended) cables up to 100 metres. HDMI extender over cat5/ cat6 us designed to convert HDMI single to standard TCP/IP and transmit by Internet cable or LAN. With the advantage of TCP/IP standard, it can transmit HDMI single source from HD STB, DVD, PS3, HDMI display etc. to HD projector, DLP, LCD, LED and other audio visual equipment.
Features
1. 100% brand new and high quality
2. Each set includes one transmitter and one receiver
3. Transmission distance extend up to 100 meters for 1080P over cat5
4. Follow the standard of IEEE-568B
5. Support resolution up to 1080p full HD
6. Support Ethernet bandwidth 100m
7. HDCP compliant
8. Extends by router connection or LAN connection, cable length requirements are as follows:
A. CAT5 80 meters maximum between two devices
B. CAT5e 100 meters maximum between two devices
C. CAT6 120 meters maximum between two devices

Specifications

General
Material	Metal
Input Port	HDMI, IR (Sender)
Output Port	HDMI (Receiver)
Resolution	480i/60Hz, 480P/60Hz, 576i/50Hz, 576P/50Hz, 720P 50/60Hz, 1080i 50/60Hz, 1080P 50/60Hz
Power Supply	DC 5.0V / 1.0A
Transmission Distance	100m
Operating Temperature	-10 to 60 Degree Celsius
Operating Humidity	20 ~ 90 Percent RH (Non-condensing)
Power Consumption	3W
Size	1075925mm
Weight	326g (2pcs)
Package Include
Package Contents	1 x User Manual 2 x Power Adapter 2 x HTMI Extender

Packing List
