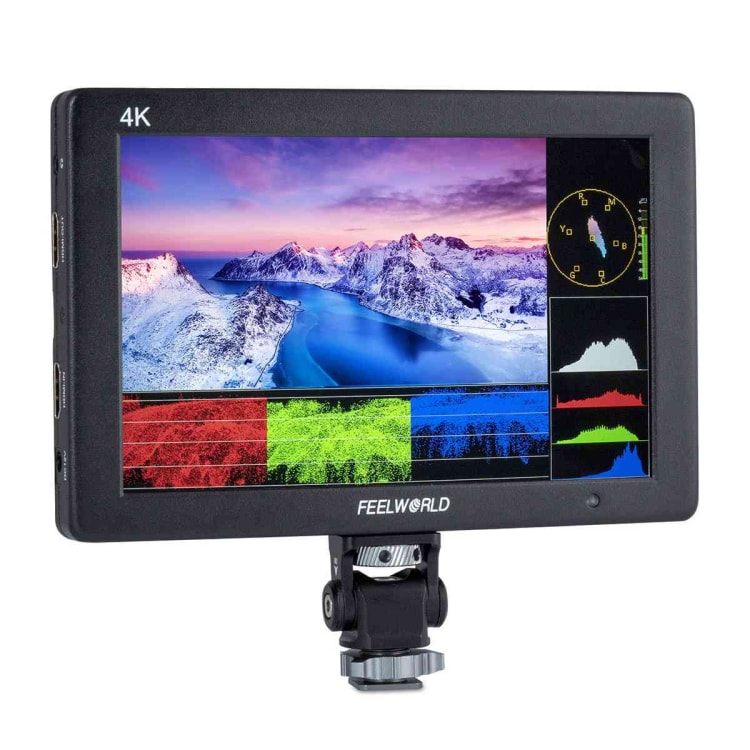

FEELWORLD T7 PLUS 7 inch 3D LUT DSLR Camera Field Monitor with Waveform 4K HDMI Aluminum Housing (Black)

Be the first to review this product

SKU: 06-0272972

High Resolution: Full HD 1920x1200
High Contrast: 1200:1
High Brightness: 450cd/m2
160 degrees wide viewing angles IPS Panel
Ultra thin design 18mm thickness
Custom 3D LUT import (up to 32)
All waves
Waveform (RGB, Y, YUV)

A$275.12

A$316.39

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

Features
1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. High Brightness: 450cd/m2
4. 160 degrees wide viewing angles IPS Panel
5. Ultra thin design 18mm thickness
6. Custom 3D LUT import (up to 32)
7. All waves
8. Waveform (RGB, Y, YUV)
9. Histogram (RGB1, Y, RGB2)
10. Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
11. False Colors
12. Zebra Exposure
13. Nine Grid
14. Embedded Audio
15. Scan Mode (Under Scan, Over Scan)
16. Zoom (4x,9x,16x)
17. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
18. Pixel to Pixel
19. Center Marker
20. Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1)
21. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
22. Marker Color (Red, Green, Blue, White, Black???
23. Check Field (Red, Green, Blue, Mono)
24. Image Flip (H, V, H/V)
25. Image Freeze
26. Zoom All (0~500 adjustable)
27. U/D & L/R Zoom (0~500 adjustable)
28. Color Temperature Adjustment
Specifications
Display Spec.:
1. Model: T7 PLUS
2. Screen Size: 7 inch IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 450cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degees / 80 degees (L/R) 80 degees /80 degees (U/D)
Input:
1 X HDMI: HDMI
Output:
1 X HDMI: HDMI
Media:
1. Audio: Stereo Headphone, Speaker
2. HDMI Input/ Output Support Format: 480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF), 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
General:
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 8W
3. Install Way: 1/4 -20 Thread Socket (top, bottom)
4. Battery Plate: F970 (Standard)
Package List
1. Monitor x 1
2. Mini HDMI Cable x 1
3. USB Adapter Cable x 1
4. Sunshade x 1
5. Mini Hot Shoe Mount+Hex Wrench x 1
6. F970 Battery Plate x 1
7. Operation Manual x 1

Packing List

FEELWORLD T7 PLUS 7 inch 3D LUT DSLR Camera Field Monitor with Waveform 4K HDMI Aluminum Housing (Black)
Original set and packaging
