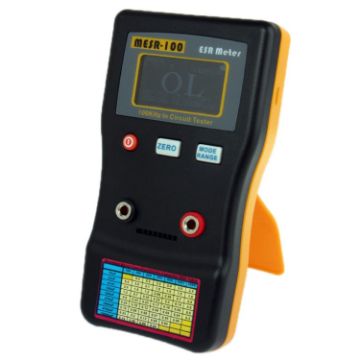

JINGYAN MESR-100 V2 Auto-ranging capacitor ESR and Low Ohm Meter, measuring range from 0.001 to 100.0R, support IN CIRCUIT Testing.
Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.
In the market, there is some technique using short pulse method to testing, but the value will be varying vs the capacitance and sometimes reading is different from the manufacturer's value.
What is ESR of capacitor?
There is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C), the impedance become small, and we can then measure the true series resistor value.
A bad E-capacitor will have larger ESR and create large ripple rather than filtering noise. Normally, a big capacitor is larger than 3 ohm.
Using this theory, we can measure the capacitor is bad/ damaged or good in condition.
Because our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test. Because this low testing voltage, it cannot turn on the semiconductor inside a circuit under testing.
LCD large screen display with backlight, easy to cope with a variety of environments
Celsius and Fahrenheit units switch
Automatic temperature compensation
Switch between TDS and conductivity
Can be used: for water treatment industry, drinking water industry, family, personal home travel, field work, etc. as a drinking water quality inspection tool
