    Voltage Current Battery Tester DC 0-200V PZEM-015 No Shunt - 1 Voltage Current Battery Tester DC 0-200V PZEM-015 No Shunt - 2 Voltage Current Battery Tester DC 0-200V PZEM-015 No Shunt - 3 Voltage Current Battery Tester DC 0-200V PZEM-015 No Shunt - 4 Voltage Current Battery Tester DC 0-200V PZEM-015 No Shunt - 5 Voltage Current Battery Tester DC 0-200V PZEM-015 No Shunt - 6 Voltage Current Battery Tester DC 0-200V PZEM-015 No Shunt - 7

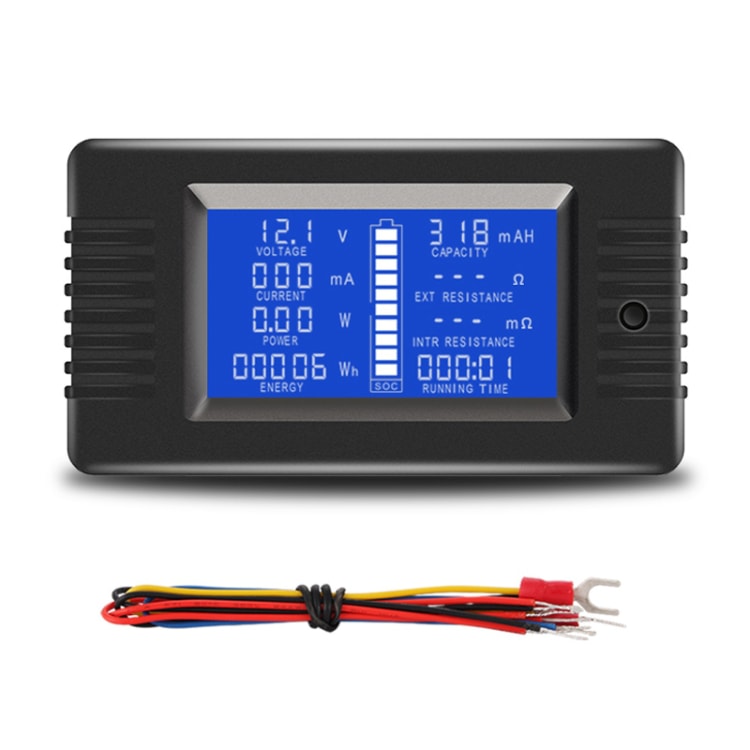

    DC 0-200V Voltage Current Battery Tester, Specification: PZEM-015 Without Shunt

    Be the first to review this product
    SKU: 06-0224271
    • Mainly used to test various battery voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, discharge energy, power consumption and running time, and display the measurement data through the LCD screen.
    • Voltage:
    • Measuring range: 0-200V. (When the test voltage is less than 8V, please use the independent power supply method)
    • Display format: less than 10V display such as: 9.99V
    • Below 100V such as: 99.9V
    • More than 100V display such as: 199V
    • Minimum resolution: 0.01V
    • Start test voltage: 0.05V
    A$21.27
    A$25.95
    Availability: In stock
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features
    • 1. Mainly used to test various battery voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, discharge energy, power consumption and running time, and display the measurement data through the LCD screen.
    • 2. Voltage:
    • - Measuring range: 0-200V. (When the test voltage is less than 8V, please use the independent power supply method)
    • - Display format: less than 10V display such as: 9.99V
    • Below 100V such as: 99.9V
    • More than 100V display such as: 199V
    • - Minimum resolution: 0.01V
    • -Start test voltage: 0.05V
    • - Measurement accuracy: 1%
    • 3. Current:
    • - Measuring range: 0-10A (Model: PZEM-013)
    • 0-300A (Model: PZEM-015)
    • - Display format: less than 1A display as: 999mA
    • Less than 10A is displayed as: 9.99a
    • Less than 100A is displayed as: 99.9A
    • Greater than or equal to 100A is displayed as: 199A
    • - Minimum resolution: 1mA
    • -Initial test current: 10mA (Model: PZEM-013)
    • 20mA (Model: PZEM-015)
    • - Measurement accuracy: 1%
    • 4. Power:
    • - Measuring range: 0-2000W (Model: PZEM-013)
    • 0-60000W (Model: PZEM-015).
    • -Display format: less than 10W display as: 9.99W
    • Less than 100W displayed as: 99.9W
    • Less than 1000W displayed as: 999W
    • Less than 10000W display as: 9.99kW
    • Greater than or equal to 10000W displayed as: 19.9kw
    • - Minimum resolution: 0.01W
    • -Initial test power: 0.1W (Model: PZEM-013)
    • 0.2W (Model: PZEM-015)
    • - Measurement accuracy: 1%
    • 5. Impedance:
    • - Measuring range: 0-1000Ohm
    • - Display format: less than 100Ohm displayed as: 99.9Ohm
    • Greater than or equal to 100Ohm displayed as: 999ohm
    • When the test range is exceeded or the current is zero, "---" is displayed.
    • - Minimum resolution: 0.1ohm
    • - Measurement accuracy: 1%
    • 6. Internal resistance:
    • - Measuring range: 0-999Milliohm
    • -Display format: 999Milliohm When the test range is exceeded or the current is zero, "---" is displayed.
    • - Minimum resolution: 1Milliohm
    • - Measurement accuracy: 1%
    • Note: Before testing the internal resistance, you need to preset the full voltage according to the battery type, and you can test it after it is fully charged; if it is not fully charged, you can set the no-load battery to the full voltage, and then test it; the internal resistance is not a fixed value, the more the battery is discharged, the more The more, the higher the resistance.
    • 7. Capacity:
    • - Measuring range: 0-1000Ah
    • - Display format: less than 1AH is: 999mAH
    • Less than 10Ah displayed as: 9.99 Ah
    • Less than 100AH ??is displayed as: 99.9ah
    • Less than 1000AH is displayed as: 999AH
    • - Minimum resolution: 1mAH
    • - Measurement accuracy: 1%
    • 8. The discharge energy is represented by the battery symbol, with a total of 10 grids, and each grid represents 10% of the power.
    • 9. Energy
    • - Measuring range: 0-9999kWh
    • -Display format: less than 1kWh display as: 999Wh
    • Less than 10kWh displayed as: 9.99kwh
    • Less than 100kWh is displayed as: 99.99kwh
    • Less than 1000kWh is displayed as: 999.99kWh
    • Greater than or equal to 1000kWh displayed as: 9999kWh
    • Return to zero on overflow
    • - Minimum resolution: 1Wh
    • - Measurement accuracy: 1%
    Packing List
    • DC 0-200V Voltage Current Battery Tester, Specification: PZEM-015 Without Shunt
    • Original set and packaging
