    BSIDE O9 Digital 50MHz Dual Channel Oscilloscope Multimeter Red - 1 BSIDE O9 Digital 50MHz Dual Channel Oscilloscope Multimeter Red - 2 BSIDE O9 Digital 50MHz Dual Channel Oscilloscope Multimeter Red - 3 BSIDE O9 Digital 50MHz Dual Channel Oscilloscope Multimeter Red - 4 BSIDE O9 Digital 50MHz Dual Channel Oscilloscope Multimeter Red - 5 BSIDE O9 Digital 50MHz Dual Channel Oscilloscope Multimeter Red - 6 BSIDE O9 Digital 50MHz Dual Channel Oscilloscope Multimeter Red - 7 BSIDE O9 Digital 50MHz Dual Channel Oscilloscope Multimeter Red - 8 BSIDE O9 Digital 50MHz Dual Channel Oscilloscope Multimeter Red - 9

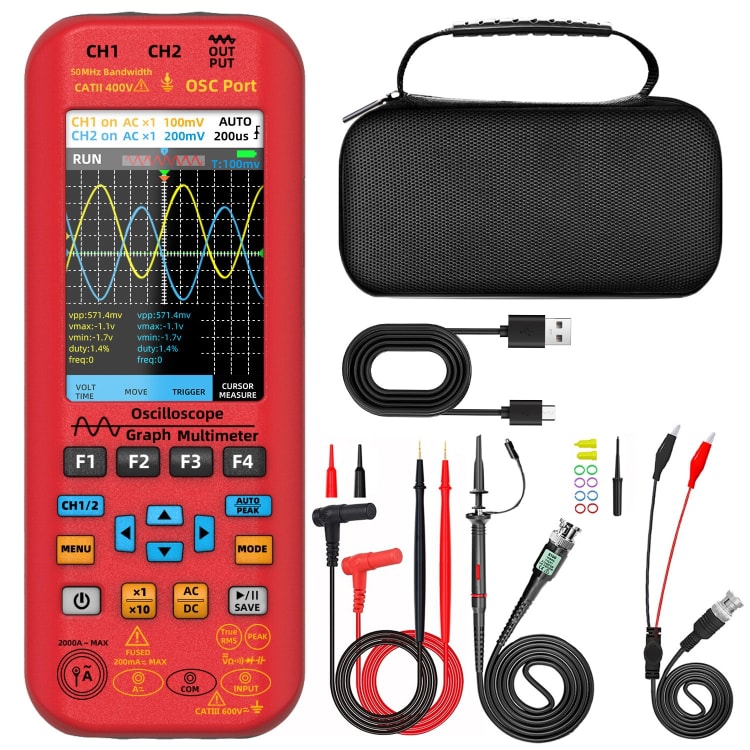

    BSIDE O9 Digital Handheld Dual Channel 50MHz Oscilloscope Signal Source Multimeter, Spec: With Single Oscilloscope Probe (Red)

    Be the first to review this product
    SKU: 06-0224703
    • Multimeter:
    • Measurement range:
    • DC voltage (V): 1000V
    • DC voltage (mV): 200mV
    • AC voltage (V): 750V
    • AC voltage (mV): 200mV
    • DC/AC current (mA): 200mA
    • AC current (A): 2000A (flexible coil required)
    A$155.00
    A$190.65
    Availability: In stock
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features
    • Multimeter:
    • 1. Measurement range:
    • - DC voltage (V): 1000V
    • - DC voltage (mV): 200mV
    • - AC voltage (V): 750V
    • - AC voltage (mV): 200mV
    • - DC/AC current (mA): 200mA
    • - AC current (A): 2000A (flexible coil required)
    • - Resistance: 200mOhm
    • - Capacitance: 99.999mF
    • - Temperature: -20-1000 degrees Celsius / -4-1832 degrees Fahrenheit
    • 2. Resolution:
    • - DC/AC voltage (V): 0.001V
    • - DC voltage (mV): 0.01mV
    • - AC voltage (mV): 0.001mV
    • - DC/AC current (mA): 0.01mA
    • - AC current (A): 0.1A
    • - Resistance: 0.001 mOhm
    • - Capacitance: 0.001F
    • - Temperature: 1 degree Celsius / Fahrenheit
    • 3. Functions: diode, on-off, true RMS, screen backlight, low battery indication, automatic shutdown
    • 4. Battery capacity: 6000mAh x 2 lithium battery (built-in)
    • Oscilloscope:
    • 1. Bandwidth: 50MH
    • 2. Sampling mode: real-time sampling
    • 3. Real-time sampling rate: 250MSa / s
    • 4. Number of channels: 2, dual-channel DC, AC
    • 5. Display mode: YT, Xy, scrolling
    • 6. Waveform output type: sine wave, square wave, triangle wave, half wave, full wave, 7. sawtooth wave, DC
    • 8. Frequency range: 0-2
    • 9. Output channel: 1
    • 10. Output amplitude: 0.1V-3.0V
    • 11. Minimum resolution: 1Hz
    • 12. Square wave duty cycle: 1%-99%1
    • Features:
    • 1. Support Chinese and English bilingual display
    • 2. 3.98-inch TFT large colour display
    • 3. Dual-channel 50Hz bandwidth, single-channel signal source, isolated channels are independent of each other to avoid interference between them, more accurate signal detection
    • 4. Dual-mode (oscilloscope/multimeter) display, switch modes at will to improve work efficiency
    • 5. Save at any time to view at any time, not afraid of missing important information, support for 36 saved records
    • 6. Intelligent anti-burning, overload does not burn the table
    • 7. One-key waveform screenshot save, save the picture can be viewed in the oscilloscope, can also be exported to the computer, convenient to the acquisition of the signal for secondary analysis
    • Packing list:
    • - Dual-channel oscilloscope multimeter
    • - 10X oscilloscope probe
    • - Oscilloscope accessories
    • - Meter pen
    • - Red and black crocodile clip probe
    • - Storage bag
    • - Instructions
    • - Charging cable
    Packing List
    • BSIDE O9 Digital Handheld Dual Channel 50MHz Oscilloscope Signal Source Multimeter, Spec: With Single Oscilloscope Probe (Red)
    • Original set and packaging
