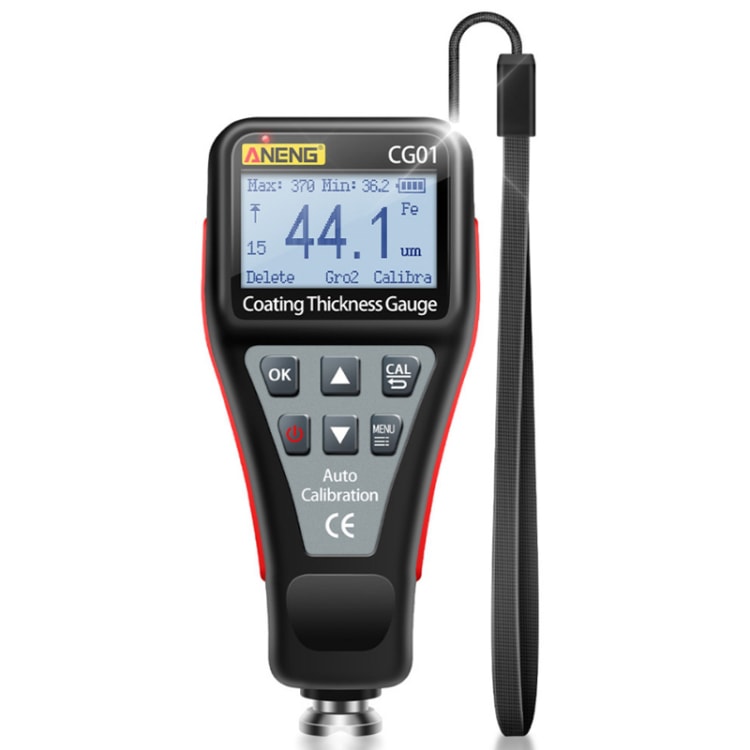

ANENG Iron-aluminum Dual-purpose Coating Thickness Measuring Instrument (CG01)

Be the first to review this product

SKU: 06-0198738

Number of calibration points: 4 calibration points for linear smoothing calculation
Data group storage: 6 groups x 100 groups
Display rotation angle: 0 degrees, 90 degrees, 180 degrees, 270 degrees/off
Unit conversion: um/mil
Upper and lower limit range: 0~1500um (0~59.0mil) freely set/close
Backlight brightness: 10 levels adjustable/close
Power battery: 2 AAA batteries (not included)
Iron base type: magnetic metal iron base (FE) / non-magnetic metal non-ferrous base (NFE) / automatic identification

A$106.95

A$129.41

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

1. Number of calibration points: 4 calibration points for linear smoothing calculation
2. Data group storage: 6 groups x 100 groups
3. Display rotation angle: 0 degrees, 90 degrees, 180 degrees, 270 degrees/off
4. Unit conversion: um/mil
5. Upper and lower limit range: 0~1500um (0~59.0mil) freely set/close
6. Backlight brightness: 10 levels adjustable/close
7. Power battery: 2 AAA batteries (not included)
8. Iron base type: magnetic metal iron base (FE) / non-magnetic metal non-ferrous base (NFE) / automatic identification
9. Measurement method: single measurement/continuous measurement
10. Low battery reminder: below 2.4V
11. Automatic shutdown: automatic shutdown without any operation within 3 minutes
12. This coating thickness gauge integrates the functions of a magnetic thickness gauge and an eddy current thickness gauge, which can be used to measure the coating thickness on ferrous and non-ferrous metal substrates
13. The dual-function built-in probe is used to automatically identify iron-based or non-ferrous metal materials, and select the corresponding measurement method for measurement
14. High measurement accuracy and wide measurement range: 0~1500um (0~59.0mil)
15. Dot matrix LCD liquid crystal display, the data can be clearly seen even when the backlight is turned off during the day, power saving, the backlight can adjust the brightness
16. With gravity sensing function, it can automatically rotate the display content, keep the direction consistent with the gravity, easy to read the measurement data
17. With 6 groups of data group storage function, it is convenient to compare the data and deviation of different parts.
18. With 4-point smoothing calibration function, making the measurement data more accurate
19. With upper and lower limit setting and prompting functions, red and green bi-color LED lights can flash, and the display screen indicates the over-limit status
20. Suitable for painting, metal processing, sales measurement, automotive paint testing, used cars, accident vehicle evaluation and other industries

Packing List

ANENG Iron-aluminum Dual-purpose Coating Thickness Measuring Instrument (CG01)
Original set and packaging
