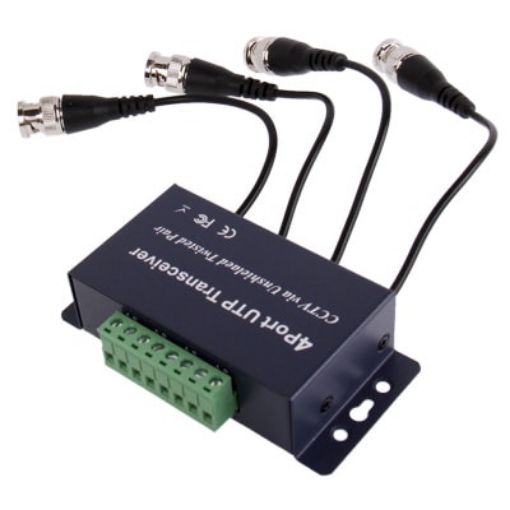

4 CH UTP Passive Balun Transceivers

SKU: 06-0154027

Cable distance: Up to 2000ft transmitter-receive UTP cat 5E or better. Point to point transmission of real-time PAL / NTSC or SECAM CVBS video signal
Video frequency response: DC TO 6 MHz
Common-mode / differential-mode reiection: 15KHz to 5KHz, 55dB typical
Line impedance: female / male BNC 75ohms, CAT5 line, terminal 100ohms
Wire type: One unshielded twisted pair 24-16 AWG (0.5-1.31mm), category type cat 5 or better. Impedance 100+/-20ohms
DC loop resistance 52ohms per 1000ft (18ohms per 100m)
Differential capacitance 19pF/ft max (62pF/m max)
Power supply: No external power required

A$15.14

A$18.62

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Cable distance: Up to 2000ft transmitter-receive UTP cat 5E or better. Point to point transmission of real-time PAL / NTSC or SECAM CVBS video signal
2. Video frequency response: DC TO 6 MHz
3. Common-mode / differential-mode reiection: 15KHz to 5KHz, 55dB typical
4. Line impedance: female / male BNC 75ohms, CAT5 line, terminal 100ohms
5. Wire type: One unshielded twisted pair 24-16 AWG (0.5-1.31mm), category type cat 5 or better. Impedance 100+/-20ohms
6. DC loop resistance 52ohms per 1000ft (18ohms per 100m)
7. Differential capacitance 19pF/ft max (62pF/m max)
8. Power supply: No external power required
9. Dimensions: 10 x 5.5 x 2.5cm

Packing List
