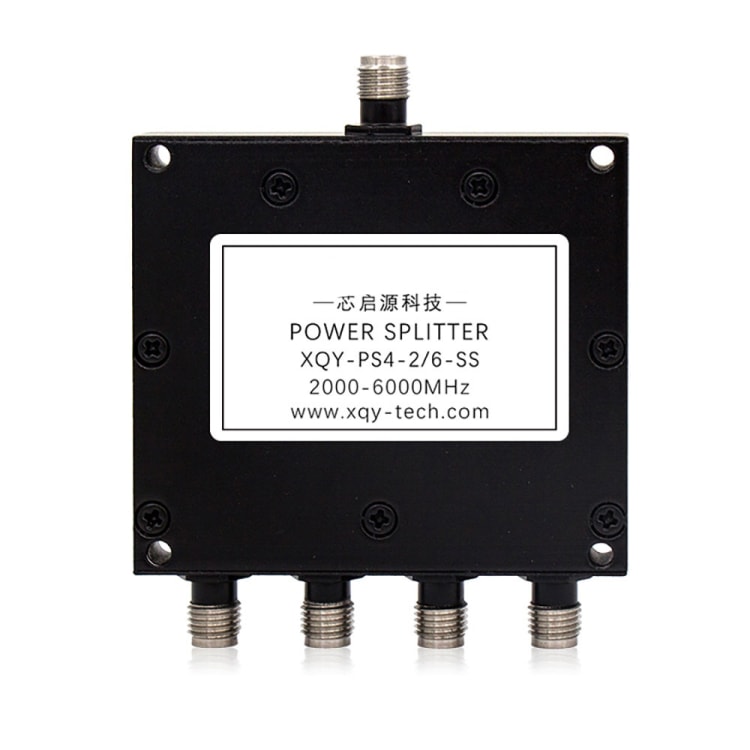

2000~6000MHz SMA 1 To 4 Microstrip Power Splitter

SKU: 06-0226865

A$67.34

A$82.83

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Impedance: 50 Ohms
2. Phase balance: 4 degrees
3. Surface treatment: black paint
4. Port connector: SMA-Female
5. Low insertion loss, low standing wave, high isolation
6. Working temperature: -45~+85 degrees celsius
7. Frequency range: 2000~6000MHz
8. Amplitude balance: 0.2dB
9. Isolation: Min.20dB
10. Input standing wave: Typ. 1.8/Max.1.25
11. Output standing wave: Typ. 1.15 / Max.1.2
12. Withstand power: 30W for splitter; 2W for combiner
13. Insertion loss: less than or equal to 0.8dB (excluding theoretical loss of 6dB)
14. Dimensions: 56x50x10mm
15. Weight: 64g
